Nautilus1
patek_philippe
Chronographe Nautilus
5980/1A
| Brand : | Patek Philippe |
| Collection : | Nautilus |
| Model : | Chronographe Nautilus |
| Reference : | 5980/1A |
| Complement : | Steel |
| Year : | 2010 |
| Is not commercialised any more | |
PDF INDEX CARD
-
Brand : Patek Philippe Collection : Nautilus Model : Chronographe Nautilus Reference : 5980/1A Complement : Steel Year : 2010 Is not commercialised any more List Price : 38 760 € Height : 38.50 mm Width : 44 mm Thickness : 12.16 mm Styles : Sporty High Horology Types : Self-winding Calibre : CH 28-520 C Calibre distinction : Circular Graining Côtes de Genève Complication : 12-Hour Counter 60-Minute Counter Flyback Chronograph Case material : Steel Case peculiarity : Sapphire caseback Screwed-down crown Bezel Crown protector Shape : Other Water-resistance : 150 meters Dial : Stamped Dial color : Charcoal Display : Chronograph/seconds hand in sandblasted and rhodiumed steel Superluminova luminescent 18K white gold Baton-style hands Indexes : 9 applied Baton Superluminova luminescent markers in 18K white gold Glass : Sapphire Strap material : Steel Strap clasp : Folding buckle + More characteristics : Column-wheel chronograph

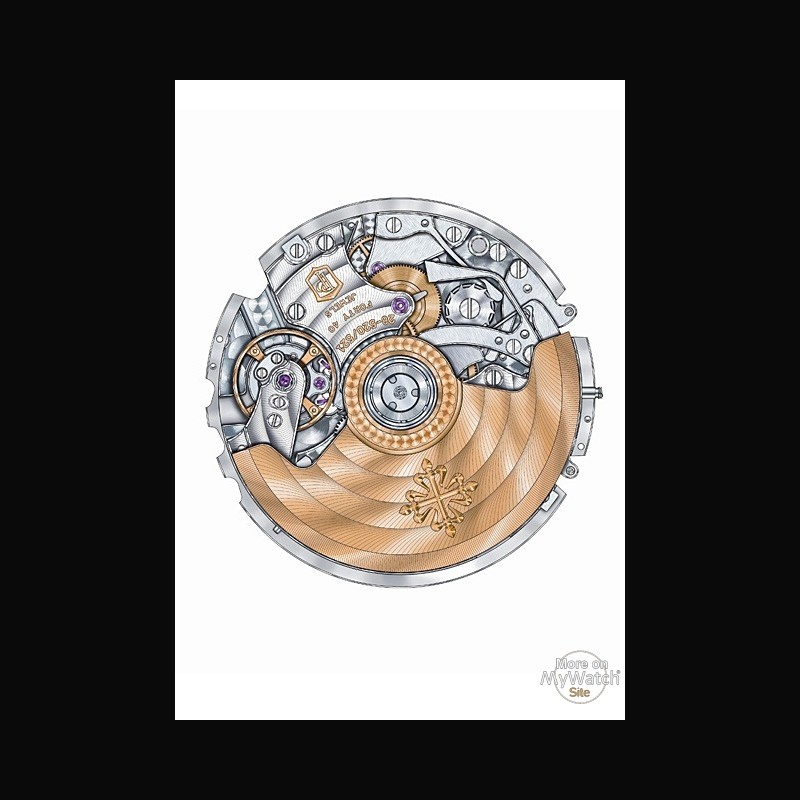

Movement
Diameter : 30 mm
Height : 6.63 mm
327 components
35 jewels
Four-arm Gyromax balance with four poising weights
Breguet Balance spring
Frequency :
28 800 vibrations per hour (4 Hz)
Central rotor in 21K gold. unidirectional winding; oil-free ball bearing with zirconium balls
Power reserve : Max. 55 hours
Case
Bezel with vertical satin finish
Date corrector push-piece at 8 o'clock
Dial
Gradation from charcoal gray to black
Horizontal embossed pattern
Two-zone monocounter with black circular guilloché center and silvery
periphery
Dual subsidiary counter dial at 6 o'clock with
- 60-minute counter (counts the elapsed minutes on two concentric scales
- 12-hour counter
Stainless steel strap. middle links polished. outer links satin-finished
Stainless steel fold-over clasp
DESCRIPTION
- Patek Philippe, Geneva
March 2010
Nautilus Chronograph Ref. 5980
Casual elegance debuts in steel and rose gold
Four years ago, on the occasion of its 30th anniversary, the entire Nautilus collection was subtly refined and scaled up with new models. Special acclaim was garnered by the Nautilus Chronograph with a sporty complication to enhance its intrinsic casual elegance. Within the scope of its chronograph premières at Baselworld 2010, Patek Philippe is now launching two further Nautilus chronograph models that with their differentiated personalities will appeal to an even broader audience.
The common denominators
What both watches share is their inimitable style, the elaborate construction of their cases, and the modern self-winding CH 28-520 C chronograph movement that has already become a legend. The three-part, 44-mm-wide case with a screwed sapphire-crystal display back exhibits a typical Nautilus feature: the lateral ridges with the porthole mechanism for securing the bezel. Together with the high-tech crown and pusher seals, it contributes to the remarkable water resistance of 12 bar (120 meters). This case, at once elegant and rugged, accommodates Patek Philippe’s self-winding CH 28-520 C chronograph movement with a column wheel, a vertical disk clutch, and an instantaneous aperture date at 3 o’clock that switches in a tenth of a second. Thanks to the nearly wear-free disk clutch, the chronograph hand can double as a continuously running sweep seconds hand without hesitation. Accordingly, the flyback chronograph movement does not have a seconds subdial. The minute and hour counters are unusual as well: they are grouped in a monocounter with three concentric scales. It totalizes the minutes from 0 to 30 and from 30 to 60 on separate scales, while the innermost scale shows elapsed hours from 1 to 12.
The special facets of the Ref. 5980/1A-014 in steel
The new Ref. 5980/1A-014 distinguishes itself from the rose-gold model in terms of the case material, the dial and date display colors, and the bracelet. This casually elegant classic leverages its masculinity in steel. It owes its unique look to the unmistakable shape of the case with prominent lateral ridges and the rounded octagonal bezel as well as to decorative finishes such as the straight-graining on the bezel and the mirror-polished surface of the bezel and case flank chamfers. The perfectly integrated stainless steel bracelet with polished center links and satin-finished outer links produces the same choreographed light effects. The new stainless steel Nautilus Chronograph also has a distinctive dial that differs from its counterparts in the rose gold and previous stainless steel models. Typical Nautilus traits include the embossing and the bright/dark gradation, but the color black is new, as are the date display with white numerals on a black background and the silvery gray monocounter with black numerals for the minute count from 0 to 30 and the hour count. The minutes from 30 to 60 are printed in red. The nine baton-style applied hour markers as well as the baton hour and minute hands are 18K white gold filled with a luminescent compound. The steel chronograph/seconds hand is sandblasted and rhodiumed. The sandblasted brass monocounter hands are color-coded: white for the hours and red for the minutes.
As its 2006 predecessor, which remains in regular production, the new stainless steel Nautilus is worn on a stainless steel bracelet. It affords a truly comfortable fit thanks to the carefully rounded links and tightly toleranced gaps. It is easy to open and secure with a practical fold-over clasp.
With its new models for the Nautilus Chronograph line, Patek Philippe has imbued the legendary Nautilus collection with fresh appeal. The new stainless steel model with a darker face expresses strength and determination while the new rose gold model showcases the chronograph function with masculine elegance. Indeed, the emotional spectrum of these Nautilus newcomers is inviting.
- Patek Philippe, Geneva
March 2010
Nautilus Chronograph Ref. 5980
Casual elegance debuts in steel and rose gold
Four years ago, on the occasion of its 30th anniversary, the entire Nautilus collection was subtly refined and scaled up with new models. Special acclaim was garnered by the Nautilus Chronograph with a sporty complication to enhance its intrinsic casual elegance. Within the scope of its chronograph premières at Baselworld 2010, Patek Philippe is now launching two further Nautilus chronograph models that with their differentiated personalities will appeal to an even broader audience.
The common denominators
What both watches share is their inimitable style, the elaborate construction of their cases, and the modern self-winding CH 28-520 C chronograph movement that has already become a legend. The three-part, 44-mm-wide case with a screwed sapphire-crystal display back exhibits a typical Nautilus feature: the lateral ridges with the porthole mechanism for securing the bezel. Together with the high-tech crown and pusher seals, it contributes to the remarkable water resistance of 12 bar (120 meters). This case, at once elegant and rugged, accommodates Patek Philippe’s self-winding CH 28-520 C chronograph movement with a column wheel, a vertical disk clutch, and an instantaneous aperture date at 3 o’clock that switches in a tenth of a second. Thanks to the nearly wear-free disk clutch, the chronograph hand can double as a continuously running sweep seconds hand without hesitation. Accordingly, the flyback chronograph movement does not have a seconds subdial. The minute and hour counters are unusual as well: they are grouped in a monocounter with three concentric scales. It totalizes the minutes from 0 to 30 and from 30 to 60 on separate scales, while the innermost scale shows elapsed hours from 1 to 12.
The special facets of the Ref. 5980/1A-014 in steel
The new Ref. 5980/1A-014 distinguishes itself from the rose-gold model in terms of the case material, the dial and date display colors, and the bracelet. This casually elegant classic leverages its masculinity in steel. It owes its unique look to the unmistakable shape of the case with prominent lateral ridges and the rounded octagonal bezel as well as to decorative finishes such as the straight-graining on the bezel and the mirror-polished surface of the bezel and case flank chamfers. The perfectly integrated stainless steel bracelet with polished center links and satin-finished outer links produces the same choreographed light effects. The new stainless steel Nautilus Chronograph also has a distinctive dial that differs from its counterparts in the rose gold and previous stainless steel models. Typical Nautilus traits include the embossing and the bright/dark gradation, but the color black is new, as are the date display with white numerals on a black background and the silvery gray monocounter with black numerals for the minute count from 0 to 30 and the hour count. The minutes from 30 to 60 are printed in red. The nine baton-style applied hour markers as well as the baton hour and minute hands are 18K white gold filled with a luminescent compound. The steel chronograph/seconds hand is sandblasted and rhodiumed. The sandblasted brass monocounter hands are color-coded: white for the hours and red for the minutes.
As its 2006 predecessor, which remains in regular production, the new stainless steel Nautilus is worn on a stainless steel bracelet. It affords a truly comfortable fit thanks to the carefully rounded links and tightly toleranced gaps. It is easy to open and secure with a practical fold-over clasp.
With its new models for the Nautilus Chronograph line, Patek Philippe has imbued the legendary Nautilus collection with fresh appeal. The new stainless steel model with a darker face expresses strength and determination while the new rose gold model showcases the chronograph function with masculine elegance. Indeed, the emotional spectrum of these Nautilus newcomers is inviting.
-
Brand : Patek Philippe Collection : Nautilus Model : Chronographe Nautilus Reference : 5980/1A Complement : Steel Year : 2010 Is not commercialised any more List Price : 38 760 € Height : 38.50 mm Width : 44 mm Thickness : 12.16 mm Styles : Sporty High Horology Types : Self-winding Calibre : CH 28-520 C Calibre distinction : Circular Graining Côtes de Genève Complication : 12-Hour Counter 60-Minute Counter Flyback Chronograph Case material : Steel Case peculiarity : Sapphire caseback Screwed-down crown Bezel Crown protector Shape : Other Water-resistance : 150 meters Dial : Stamped Dial color : Charcoal Display : Chronograph/seconds hand in sandblasted and rhodiumed steel Superluminova luminescent 18K white gold Baton-style hands Indexes : 9 applied Baton Superluminova luminescent markers in 18K white gold Glass : Sapphire Strap material : Steel Strap clasp : Folding buckle More characteristics : Column-wheel chronograph
Movement
Diameter : 30 mm
Height : 6.63 mm
327 components
35 jewels
Four-arm Gyromax balance with four poising weights
Breguet Balance spring
Frequency :
28 800 vibrations per hour (4 Hz)
Central rotor in 21K gold. unidirectional winding; oil-free ball bearing with zirconium balls
Power reserve : Max. 55 hours
Case
Bezel with vertical satin finish
Date corrector push-piece at 8 o'clock
Dial
Gradation from charcoal gray to black
Horizontal embossed pattern
Two-zone monocounter with black circular guilloché center and silvery
periphery
Dual subsidiary counter dial at 6 o'clock with
- 60-minute counter (counts the elapsed minutes on two concentric scales
- 12-hour counter
Stainless steel strap. middle links polished. outer links satin-finished
Stainless steel fold-over clasp
