RM 033 Automatique Extra Plat

RM 033 Automatique Extra Plat View larger
RM 033 Automatique Extra Plat

Brand  : Richard Mille
Collection  : RM 033
Model  : RM 033 Automatique Extra Plat
Reference  :
Complement : Titanium
On sale : 2011

94 500 €Recorded list price in FranceI WANT IT

PDF INDEX CARD

REQUEST A PRICE

Price request for RM 033 Automatique Extra PlatRef.

RM 033 Automatique Extra Plat

YOU WANT IT ? WE SEARCH IT !

This fonction is reserved for exclusive members of MyWatchSite.

There is nothing easier than becoming a member!

  • Brand  : Richard Mille
    Collection  : RM 033
    Model  : RM 033 Automatique Extra Plat
    Reference  :
    Complement : Titanium
    On sale : 2011
    List Price : 94 500 €
    Diameter : 45.70 mm
    Thickness : 6.30 mm
    Styles : Atypical
    High Horology
    Evening
    Types : Self-winding
    Calibre : RMXP1
    Calibre distinction : Extra-thin
    Complication : Skeleton
    Case material : Titanium
    Case peculiarity : Extra-thin
    Traitement antireflet
    Sapphire caseback
    Shape : Round
    Water-resistance : 30 meters
    Display : Luminescent hands
    Indexes : Luminescent
    Dots
    Roman numerals
    Glass : Sapphire
    Antireflective coating
    Strap material : Rubber
    Strap color : Black
    + More characteristics : Movement
    Bi-directionnal decentral monobloc micro rotor in platinum
    Free sprung balance with variable inertia
    Bottom plate in grade 5 titanium with Titalyt® coating
    Bridges and balance coq in grade5 titanium with PVD coating
    Spline screws in grade 5 titanium for the bridges

    Diameter of the movement:
    33.00 mm
    Thickness: 2.60 mm
    Number of jewels: 29
    Barrel arbor – in 20AP steel
    Balance: Glucydur. 4 arms. inertia moment 5.75 mg.cm2. angle of lift 53º
    Frequency:
    21.600 vibrations per hour (3Hz)
    Balance spring: Nivaflex
    Shock protection: Incabloc 908.22.211.100 (transparent)
    Power reserve: approx. 42 hours

    Titanium tripartite case
    2 Nitril O-ring seals
    16 spline screws in grade 5 titanium
    Washers in 316L stainless steel

DESCRIPTION

  • RICHARD MILLE CALIBER EXTRA FLAT AUTOMATIC RM 033

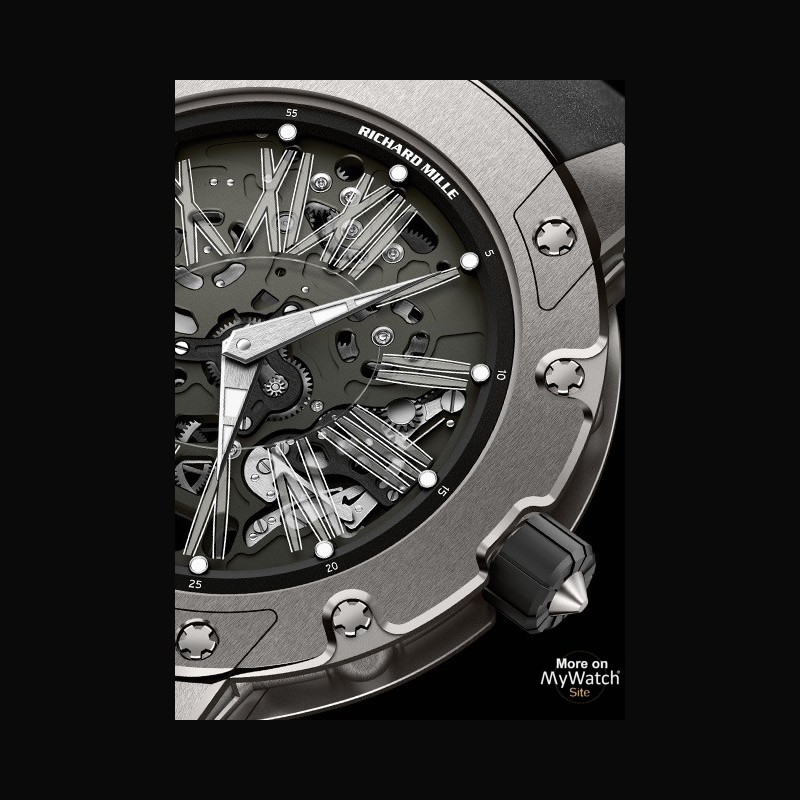

    Round case - available in titanium, 18k white gold or red gold

    An extra flat movement is something most subtle and elegant in the world of horology since the expertise of the watchmaker resides in achieving something almost invisible. The constraints of producing this model are made even more challenging given the limited space available.

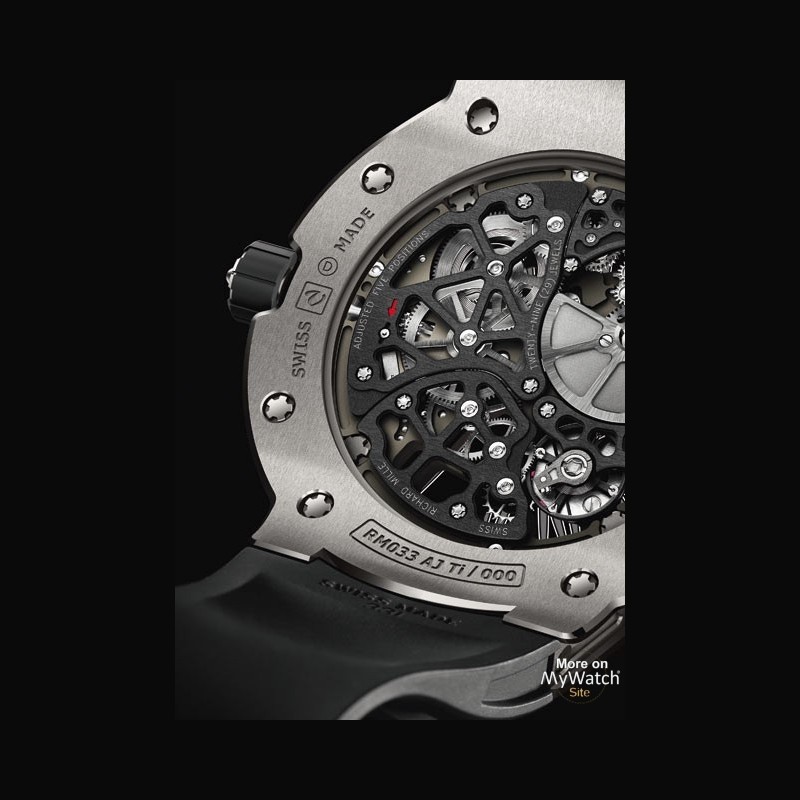

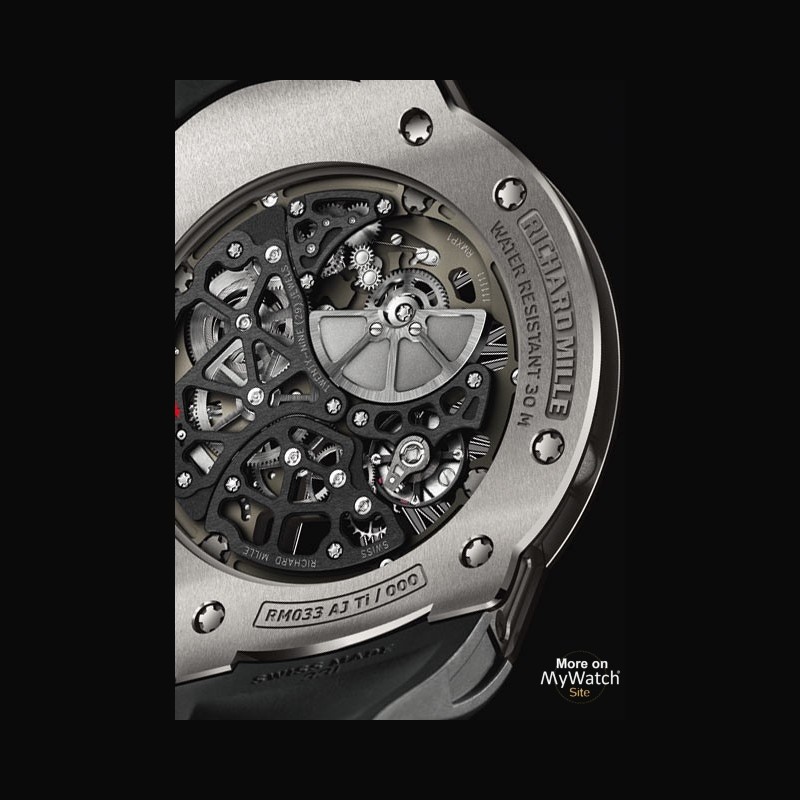

    In the case of the automatic extra flat wristwatch the RM 033, one of its characteristic lies in the placement of the RMXP1 caliber’s automatic micro rotor to the side rather than the center of the movement, thus saving precious millimeters in total height.
    As a result, this movement has a diameter of 33.00 mm while its thickness is only of 2.60 mm. To provide perfect weight distribution for this decentral rotor to function optimally, it has been designed to wind bi-directionally and is manufactured from solid Platinum, allowing for efficient winding as well as compact dimensions of the extra flat skeletonized movement.
    The caliber RMXP1, with 29 jewels and beating at 3Hz, has a free sprung balance with variable inertia. This type of balance wheel represents the ultimate in innovation. It guarantees greater reliability when subjected to shock and also during movement assembly and disassembly, hence better chronometric results over time.
    The regulator index is eliminated and a more accurate and repeatable adjustment is possible thanks to 4 small adjustable weights located directly on the balance.

    For the creation of the RMXP1 caliber, the bottom plate bridges and balance cock are made of titanium. The manufacturing of these components in grade 5 titanium with Titalyt®treatment for the bottom plate and black PVD coating for the bridges allows the entire ultra thin assembly to be given great rigidity, as well as precise surface flatness which is essential for the perfect functioning of the gear train as well as stability of the movement. The baseplate and all titanium parts have been subjected to separate and extensive validation tests to insure optimal strength requirements.

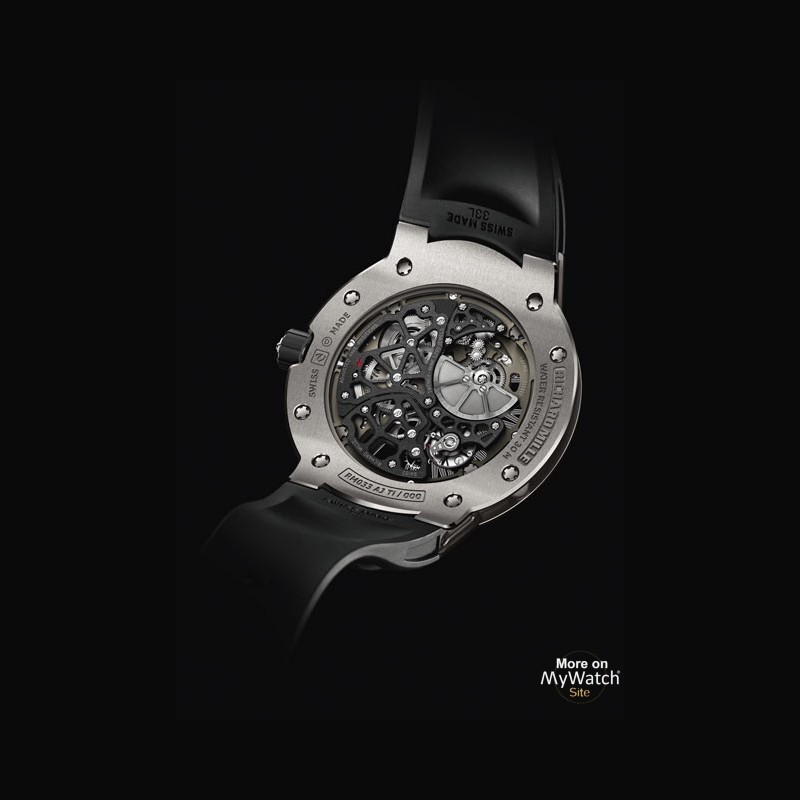

    The round case design of the RM 033 measures 45.70 mm x a mere 6.30 mm in thickness. The curving case back has become the trademark of the entire Richard Mille collection. This tripartite case with a complete integration of the lugs into the case system is water resistant to 30 meters, ensured by two Nitril O-ring seals. It is assembled with 16 spline screws in grade 5 titanium and abrasion resistant washers in 316L stainless steel.

    Many details form the signature of this simple and elegant watch, such as the free sprung balance with variable inertia, a power reserve of 42 hours, the extensive use of spline screws throughout the movement, the rigorous design and execution of the case, the ceramic crown sealed with double seal O-rings.
  • RICHARD MILLE CALIBER EXTRA FLAT AUTOMATIC RM 033

    Round case - available in titanium, 18k white gold or red gold

    An extra flat movement is something most subtle and elegant in the world of horology since the expertise of the watchmaker resides in achieving something almost invisible. The constraints of producing this model are made even more challenging given the limited space available.

    In the case of the automatic extra flat wristwatch the RM 033, one of its characteristic lies in the placement of the RMXP1 caliber’s automatic micro rotor to the side rather than the center of the movement, thus saving precious millimeters in total height.
    As a result, this movement has a diameter of 33.00 mm while its thickness is only of 2.60 mm. To provide perfect weight distribution for this decentral rotor to function optimally, it has been designed to wind bi-directionally and is manufactured from solid Platinum, allowing for efficient winding as well as compact dimensions of the extra flat skeletonized movement.
    The caliber RMXP1, with 29 jewels and beating at 3Hz, has a free sprung balance with variable inertia. This type of balance wheel represents the ultimate in innovation. It guarantees greater reliability when subjected to shock and also during movement assembly and disassembly, hence better chronometric results over time.
    The regulator index is eliminated and a more accurate and repeatable adjustment is possible thanks to 4 small adjustable weights located directly on the balance.

    For the creation of the RMXP1 caliber, the bottom plate bridges and balance cock are made of titanium. The manufacturing of these components in grade 5 titanium with Titalyt®treatment for the bottom plate and black PVD coating for the bridges allows the entire ultra thin assembly to be given great rigidity, as well as precise surface flatness which is essential for the perfect functioning of the gear train as well as stability of the movement. The baseplate and all titanium parts have been subjected to separate and extensive validation tests to insure optimal strength requirements.

    The round case design of the RM 033 measures 45.70 mm x a mere 6.30 mm in thickness. The curving case back has become the trademark of the entire Richard Mille collection. This tripartite case with a complete integration of the lugs into the case system is water resistant to 30 meters, ensured by two Nitril O-ring seals. It is assembled with 16 spline screws in grade 5 titanium and abrasion resistant washers in 316L stainless steel.

    Many details form the signature of this simple and elegant watch, such as the free sprung balance with variable inertia, a power reserve of 42 hours, the extensive use of spline screws throughout the movement, the rigorous design and execution of the case, the ceramic crown sealed with double seal O-rings.
  • Brand  : Richard Mille
    Collection  : RM 033
    Model  : RM 033 Automatique Extra Plat
    Reference  :
    Complement : Titanium
    On sale : 2011
    List Price : 94 500 €
    Diameter : 45.70 mm
    Thickness : 6.30 mm
    Styles : Atypical
    High Horology
    Evening
    Types : Self-winding
    Calibre : RMXP1
    Calibre distinction : Extra-thin
    Complication : Skeleton
    Case material : Titanium
    Case peculiarity : Extra-thin
    Traitement antireflet
    Sapphire caseback
    Shape : Round
    Water-resistance : 30 meters
    Display : Luminescent hands
    Indexes : Luminescent
    Dots
    Roman numerals
    Glass : Sapphire
    Antireflective coating
    Strap material : Rubber
    Strap color : Black
    More characteristics : Movement
    Bi-directionnal decentral monobloc micro rotor in platinum
    Free sprung balance with variable inertia
    Bottom plate in grade 5 titanium with Titalyt® coating
    Bridges and balance coq in grade5 titanium with PVD coating
    Spline screws in grade 5 titanium for the bridges

    Diameter of the movement:
    33.00 mm
    Thickness: 2.60 mm
    Number of jewels: 29
    Barrel arbor – in 20AP steel
    Balance: Glucydur. 4 arms. inertia moment 5.75 mg.cm2. angle of lift 53º
    Frequency:
    21.600 vibrations per hour (3Hz)
    Balance spring: Nivaflex
    Shock protection: Incabloc 908.22.211.100 (transparent)
    Power reserve: approx. 42 hours

    Titanium tripartite case
    2 Nitril O-ring seals
    16 spline screws in grade 5 titanium
    Washers in 316L stainless steel
