RM 07-01
View larger
| Brand : | Richard Mille |
| Collection : | RM 07 |
| Model : | RM 07-01 |
| Complement : | TPZ-Z brown ceramic - Red Gold - Diamonds |
| On sale : | 2017 |
PDF INDEX CARD
-
Brand : Richard Mille Collection : RM 07 Model : RM 07-01 Complement : TPZ-Z brown ceramic - Red Gold - Diamonds On sale : 2017 List Price : 72 500 € Height : 45.66 mm Width : 31.40 mm Thickness : 11.85 mm Styles : Atypical High Horology High Jewellery Types : Self-winding Calibre : CRMA2 Calibre distinction : Skeleton Titanium bridges Hand-polished bevelling Case material : TPZ-Z brown ceramic Case peculiarity : Set with diamonds Titanium screws Shape : Tonneau Water-resistance : 50 meters Display : Hands Glass : Sapphire External and internal anti-reflective treatment + More characteristics :
Movement
Skeletonised automatic movement with hours, minutes and adjustable rotor geometry
Dimensions: 45.66 x 31.40 x 11.85 mm
Power reserve
Circa 50 hours (±10%)
Baseplate and bridges made of grade 5 titanium
Rotor with variable geometry
Free sprung balance with variable inertia
Fast rotating barrel (5 hours per revolution instead of 7.5 hours)
Newly developed gear teeth profile
Spline screws in grade 5 titanium for the movement
Movement dimensions: 29.90 x 22.00 mm
Thickness: 4.92 mm
Jewels: 25
Balance: CuBe, 4 arms, 4 setting screws, inertia moment 7.5 mg.cm2, angle of lift 50º
Frequency: 28,800 vph (4 Hz)
Balance spring: AK3
Shock protection: Incabloc 908.22.211.100 (transparent)
Escapement wheel jewels: Rubifix (transparent)
Microblasted anglage
Microblasted milled section
Microblasted sinks
Electroplasma treatment for the baseplate and the bridges
Steel parts :
Satin finished surfaces
Anglage hand polished
Hand polished sinks
Burnished sections
Profile-turning :
Lapped and polished ends
Burnished pivots
Post faces polished
Wheels :
Concave chamfering with a diamond tool
Diamond polished angles
Circular finished faces
Rhodium-plating (before cutting the teeth)
Case
NTPT carbon gem-set with a caseband in gold 5N
New patented stem-crown construction
Spline screws in grade 5 titanium for the case
Upper flange
Crystal :
Bezel side: in sapphire (1800 Vickers) with anti-glare treatment (2 sides)
Thickness: 1.60 mm
Case back: in sapphire with anti-glare treatment (2 sides)
Thickness: at the center 0.95 mm and outer edges 1.67 mm
Available in ATZ white ceramic or TZP-Z brown ceramic with the red gold caseband entirely in white or red gold gem-set or polished with various options for the dial (Onyx, Jasper, Nacre…) and NTPT carbon gem-set
DESCRIPTION

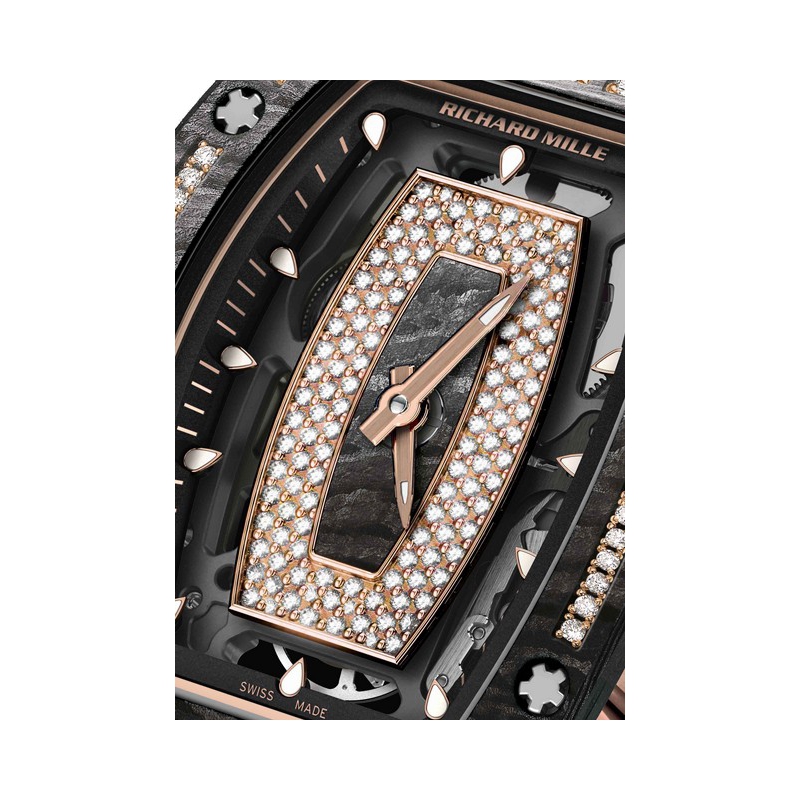

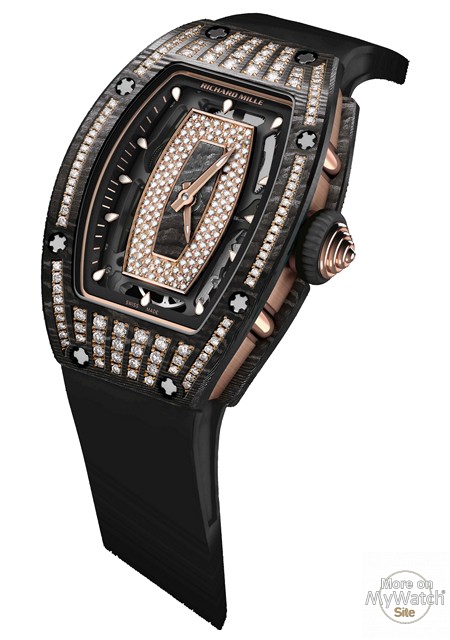

NEW RM 07-01 AND RM 037 MODELS FEATURING GEM-SET NTPT CARBON
NTPT carbon is a signature feature of the Richard Mille men’s collection. Indeed, it lends watches a unique and powerful appearance while simultaneously ensuring an optimal protection for the calibre.
Today, this material reveals its feminine side in the RM 07-01 and RM 037, which boast gem-set NTPT carbon of unsurpassed elegance, a Richard Mille exclusive.At the slightest wrist movement, all eyes are riveted by a striking contrast between the sparkle of clear diamonds and the matt carbon contour that adorn both of these automatic timepieces.
Setting gemstones in NTPT carbon is a new adventure for the brand. Unlike gold, which can be worked directly with tools to create the prongs that will hold the diamonds, the hardness and resistance of NTPT carbon mean special CNC machines for milling equipped with diamond tools are required to perform the mitraillage involved in a pavé setting.
Hand-polished prongs in red or white gold are produced separately and then inserted around the many 0.25mm bearings destined to firmly contain as many as 250 diamonds in the case of an RM 037 Full Set model. The perfectly flush surface of each creation bears witness to an absolute mastery of this art.
Thanks to the technicity of their in-house calibres and their cases adorned with diamonds and NTPT carbon—immutable materials—the RM 07-01 and the RM 037 are particularly balanced and refined models.
NEW RM 07-01 AND RM 037 MODELS FEATURING GEM-SET NTPT CARBON
NTPT carbon is a signature feature of the Richard Mille men’s collection. Indeed, it lends watches a unique and powerful appearance while simultaneously ensuring an optimal protection for the calibre.
Today, this material reveals its feminine side in the RM 07-01 and RM 037, which boast gem-set NTPT carbon of unsurpassed elegance, a Richard Mille exclusive.At the slightest wrist movement, all eyes are riveted by a striking contrast between the sparkle of clear diamonds and the matt carbon contour that adorn both of these automatic timepieces.
Setting gemstones in NTPT carbon is a new adventure for the brand. Unlike gold, which can be worked directly with tools to create the prongs that will hold the diamonds, the hardness and resistance of NTPT carbon mean special CNC machines for milling equipped with diamond tools are required to perform the mitraillage involved in a pavé setting.
Hand-polished prongs in red or white gold are produced separately and then inserted around the many 0.25mm bearings destined to firmly contain as many as 250 diamonds in the case of an RM 037 Full Set model. The perfectly flush surface of each creation bears witness to an absolute mastery of this art.
Thanks to the technicity of their in-house calibres and their cases adorned with diamonds and NTPT carbon—immutable materials—the RM 07-01 and the RM 037 are particularly balanced and refined models.
-
Brand : Richard Mille Collection : RM 07 Model : RM 07-01 Complement : TPZ-Z brown ceramic - Red Gold - Diamonds On sale : 2017 List Price : 72 500 € Height : 45.66 mm Width : 31.40 mm Thickness : 11.85 mm Styles : Atypical High Horology High Jewellery Types : Self-winding Calibre : CRMA2 Calibre distinction : Skeleton Titanium bridges Hand-polished bevelling Case material : TPZ-Z brown ceramic Case peculiarity : Set with diamonds Titanium screws Shape : Tonneau Water-resistance : 50 meters Display : Hands Glass : Sapphire External and internal anti-reflective treatment More characteristics :
Movement
Skeletonised automatic movement with hours, minutes and adjustable rotor geometry
Dimensions: 45.66 x 31.40 x 11.85 mm
Power reserve
Circa 50 hours (±10%)
Baseplate and bridges made of grade 5 titanium
Rotor with variable geometry
Free sprung balance with variable inertia
Fast rotating barrel (5 hours per revolution instead of 7.5 hours)
Newly developed gear teeth profile
Spline screws in grade 5 titanium for the movement
Movement dimensions: 29.90 x 22.00 mm
Thickness: 4.92 mm
Jewels: 25
Balance: CuBe, 4 arms, 4 setting screws, inertia moment 7.5 mg.cm2, angle of lift 50º
Frequency: 28,800 vph (4 Hz)
Balance spring: AK3
Shock protection: Incabloc 908.22.211.100 (transparent)
Escapement wheel jewels: Rubifix (transparent)
Microblasted anglage
Microblasted milled section
Microblasted sinks
Electroplasma treatment for the baseplate and the bridges
Steel parts :
Satin finished surfaces
Anglage hand polished
Hand polished sinks
Burnished sections
Profile-turning :
Lapped and polished ends
Burnished pivots
Post faces polished
Wheels :
Concave chamfering with a diamond tool
Diamond polished angles
Circular finished faces
Rhodium-plating (before cutting the teeth)
Case
NTPT carbon gem-set with a caseband in gold 5N
New patented stem-crown construction
Spline screws in grade 5 titanium for the case
Upper flange
Crystal :
Bezel side: in sapphire (1800 Vickers) with anti-glare treatment (2 sides)
Thickness: 1.60 mm
Case back: in sapphire with anti-glare treatment (2 sides)
Thickness: at the center 0.95 mm and outer edges 1.67 mm
Available in ATZ white ceramic or TZP-Z brown ceramic with the red gold caseband entirely in white or red gold gem-set or polished with various options for the dial (Onyx, Jasper, Nacre…) and NTPT carbon gem-set
